Quad Level Indicator LED can be customized with multi color led diode

Name: Quad Level Indicator LED can be customized with multi color led diode
Brand: Double Light
Price: 0.15 USD

Quad Level Indicator LED can be customized with multi color led diode Manufactures

Brand Name : Double Light

Model Number : DL-H30D-4YGD

Certification : ISO9001:2008, Rosh

Place of Origin : China

MOQ : 10 000 PCS

Price : USD 0.15-0.18/PCS

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : LED Light Components

Emitted Color : Yellow Green

Chip Material : AllnGaP

Lens Type : Green Diffused

Peak Emission Wavelength : 568-572nm

Forward Voltage @20ma : 1.8-2.6V

Viewing Angle : 30 Deg

Luminous Flux : 30mcd

Contact Now

Quad Level Indicator LED can be customized with multi color led diode

RED LED Light Components

Primary Competitive Advantages:
Green Product
Packaging
Product Features
Product Performance
Reputation

Features

Pre-trimmed leads for PC mounting
Black case enhances contrast ratio
Wide viewing angle
High reliability life measured in years
Housing UL rating: 94V-0
Housing material: PPA
High temperature-resistant housing
High glass transition temperature epoxy
Package: 500pcs/reel
Moisture sensitivity level: level 3
Compliant with RoHS Directive

◇ Low power consumption.
◇ High efficiency and low cost.
◇ Good control and free combinations on the colors of LED lamps.
◇ Good lock and easy to assembly.
◇ Stackable and easy to assembly.
◇ Stackable vertically and easy to assembly.
◇ Versatile mounting on P.C board or panel.
◇ Stackable horizontally and easy to assembly.
◇ The product itself will remain within RoHS compliant version.
◇ ARRAY=Plastic Holder + Combinations of Lamps.
◇ The array will easily mount be applicable on any panel up to.
◇ Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.

Absolute Maximum Ratings at Ta=25℃

Parameters		Symbol	Max.	Unit
Power Dissipation	Hi-Eff Red	PD	78	mW
	Yellow Green		78
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)		IFP	100	mA
Super Red Chip Forward Current		IF	30	mA
Yellow Green Chip Forward Current		IF	30	mA
Reverse Voltage		VR	5	V
Operating Temperature Range		Topr	-40℃ to +85℃
Storage Temperature Range		Tstg	-40℃ to +100℃
Lead Soldering Temperature [4mm (.157″) From Body]		Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Emitting Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	Red	50	100	---	mcd	IF=20mA
		Green	10	25	---
Viewing Angle	2θ_1/2	Red	---	60	---	Deg
		Green	---	60	---
Peak Emission Wavelength	λp	Red	---	630	---	nm	IF=20mA
		Green	---	565	---
Dominant Wavelength	λd	Red	---	620	---	nm	IF=20mA
		Green	---	570	---
Spectral Line Half-Width	△λ	Red	---	42	---	nm	IF=20mA
		Green	--	30	---
Forward Voltage	VF	Red	1.80	2.20	2.80	V	IF=20mA
		Green	1.80	2.20	2.80
Reverse Current	IR	Red	---	---	10	µA	V_R=5V
		Green

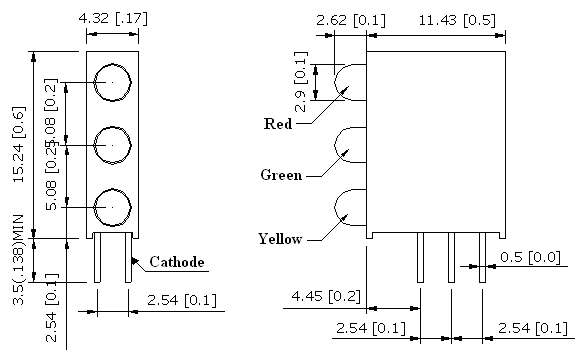

Package Dimension:

Quad Level Indicator LED can be customized with multi color led diode

We can offer relative datasheet for chcek.
